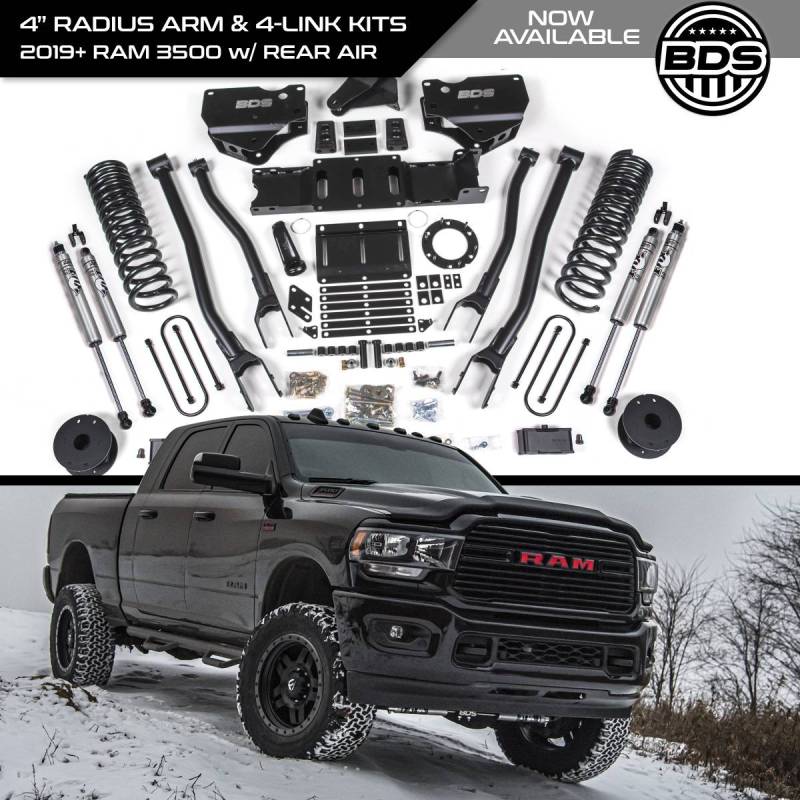

BDS 4 Inch Lift Kit w/ 4-Link and NX2 Shocks for Ram 3500 w/Rear Air Ride and 6 Bolt Indexing Ring (19-24) 4WD Diesel (1720H)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1720H
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $2,660.67
Qty:

Description

4" 4-Link Systems for the rear air-bag equipped RAM 3500.
Based on the popular BDS 4-link kits for the standard RAM HDs, these kit variants retain full functionality of the factory rear air-bag and on-road comfort while improving offroad capability

Up front these systems use a pair of progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar along with extended polyurethane bump stops to correctly limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height the factory stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear, a 3" lift block and u-bolts are supplied to lift and level the stance along with a heavy duty air bag spacer brackets. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks.

Get the look and the ride you are after with these new 4" 4-link systems from BDS Suspension.

Tire & Wheel Combinations
37x12.50 w/20x9 and 5.625" back spacing
35x12.50 w/20x9 and 4.5" back spacing
*Trimming may be required*

Est. Installation: 7-8 hours
Difficulty Level (easy 1 - 5 complicated): 4
