BDS 4 Inch Lift Kit FOX 2.5 Performance Elite Coil-Over w/3" Rear Block for Ford F150 (21-24) 4WD (1583FPE)

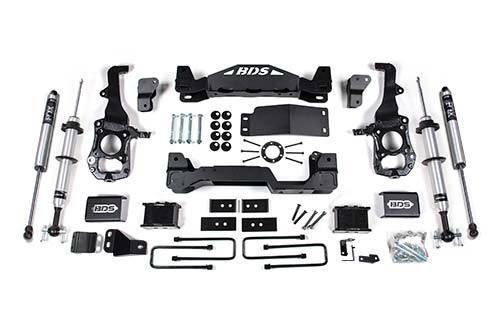

This image is a representation of the product only. Actual product may vary in appearance.
BDSK-BDS1583FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing:
$4,580.64
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Vehicle Fitment
Supplied Vehicle Information for 1583FPE
Important Notes
1. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
2. 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
3. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
4. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
5. Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
6. Does NOT fit diesel models.
7. Will not work with Tremor models.
8. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
9. This system has not been tested on models equipped with Ford BlueCruise.
10. Will not work with models with CCD (Continuous Controlled Damping)
Tire & Wheel Combinations
35x12.50 w/20x8 and 5.5-5.75" back spacing
295/60 w/20x9 and 4.5.-5.75" back spacing
35x12.50 w/20x9 and 4.5-5.75" back spacing
*Trimming may be required*
Est. Installation: 8-10 hours
Difficulty Level (easy 1 - 5 complicated): 4
2. 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
3. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
4. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
5. Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
6. Does NOT fit diesel models.
7. Will not work with Tremor models.
8. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
9. This system has not been tested on models equipped with Ford BlueCruise.
10. Will not work with models with CCD (Continuous Controlled Damping)
Tire & Wheel Combinations
35x12.50 w/20x8 and 5.5-5.75" back spacing
295/60 w/20x9 and 4.5.-5.75" back spacing
35x12.50 w/20x9 and 4.5-5.75" back spacing
*Trimming may be required*
Est. Installation: 8-10 hours
Difficulty Level (easy 1 - 5 complicated): 4
