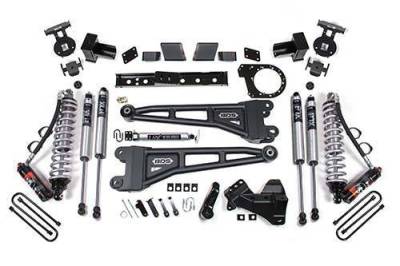

BDS 6 Inch Lift Kit w/Radius Arm, Fox Shocks and 5" Rear Block, FOX 2.5 Performance Elite Coil-Over Conversion for Ford F250/F350 Super Duty w/2 Leaf Main (17-19) 4WD Diesel (1580FPE)

1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)
2. 38 x 13.50 tires may require minor trimming.
3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
4. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
5. If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)
6. Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.

Tire & Wheel Combinations
38x13.50 w/17x9/18x9/20x9 and 4.5-5" back spacing
38x13.50 w/17x10/18x10 and 5" back spacing
38x13.50 w/20x10 and 5" back spacing
*Trimming may be required*

Est. Installation: 6-8 hours
Difficulty Level (easy 1 - 5 complicated): 4
