BDS 6.5 Inch Lift Kit FOX Performance Elite Chevy Silverado or GMC Sierra 2500HD/3500HD w/o Overload (20-24) 4WD (1823FPE)

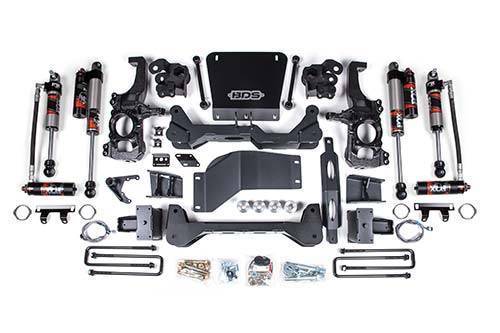

This image is a representation of the product only. Actual product may vary in appearance.
BDSK-BDS1823FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing:
$5,421.77
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Vehicle Fitment
Supplied Vehicle Information for 1823FPE
Important Kit Notes
1. For DRW models, use the w/ overload rear lift option
2. Requires frame bracket modification.
3. Torsion Bar Tool required to load/unload torsion bars
4. Models with two-piece rear driveshafts will require a carrier bearing drop kit.
5. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
6. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
7. Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more that tested 6.5" lift height.
8. Compatible with gas or diesel models.
9. Compatible with standard models as well as AT4 models.
10. Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
11. Further trimming tips are included at the end of this instruction sheet.
Tire & Wheel Combinations
38x13.50 w/20x9 and 5.5" - 6.18" back spacing
37x12.50 w/20x9 and 4.5" - 4.625" back spacing
*Trimming may be required*
Est. Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 4
2. Requires frame bracket modification.
3. Torsion Bar Tool required to load/unload torsion bars
4. Models with two-piece rear driveshafts will require a carrier bearing drop kit.
5. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
6. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
7. Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more that tested 6.5" lift height.
8. Compatible with gas or diesel models.
9. Compatible with standard models as well as AT4 models.
10. Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
11. Further trimming tips are included at the end of this instruction sheet.
Tire & Wheel Combinations
38x13.50 w/20x9 and 5.5" - 6.18" back spacing
37x12.50 w/20x9 and 4.5" - 4.625" back spacing
*Trimming may be required*
Est. Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 4
Details
- BDSK-BDS1823FPE
- BDSK-BDS1823FPE
- BDS
- New
Categories
Shipping Information
- Item Requires Shipping
