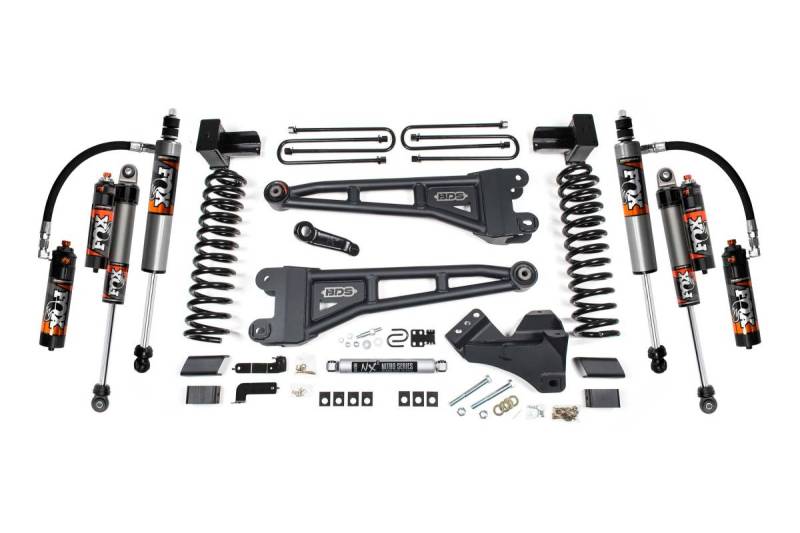

BDS 5 Inch Lift Kit w/ Radius Arm, Fox 2.5 Performance Elite and 5" Block w/3 Leaf Main Ford F250/F350 Super Duty (23-24) 4WD Diesel (2205FPE)
This image is a representation of the product only. Actual product may vary in appearance.
BDSK-BDS2205FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing:
$5,243.15
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Vehicle Fitment
Supplied Vehicle Information for BDS2205FPE
Important Kit Notes
1. This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Trucks without top mounted overload springs will require (4) UBT4028.
Tire & Wheel Combinations
37" x 12.50 w/17 x 9 and 4.5-5" back spacing
37" x 12.50 w/18 x 9 and 4.5-5" back spacing
37" x 12.50 w/20 x 9 and back spacing
*Trimming may be required*
Est. Installation: 4-5 hours
Difficulty Level (easy 1 - 5 complicated): 3
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Trucks without top mounted overload springs will require (4) UBT4028.
Tire & Wheel Combinations
37" x 12.50 w/17 x 9 and 4.5-5" back spacing
37" x 12.50 w/18 x 9 and 4.5-5" back spacing
37" x 12.50 w/20 x 9 and back spacing
*Trimming may be required*
Est. Installation: 4-5 hours
Difficulty Level (easy 1 - 5 complicated): 3
Details
- BDSK-BDS2205FPE
- BDSK-BDS2205FPE
- BDS
- New
