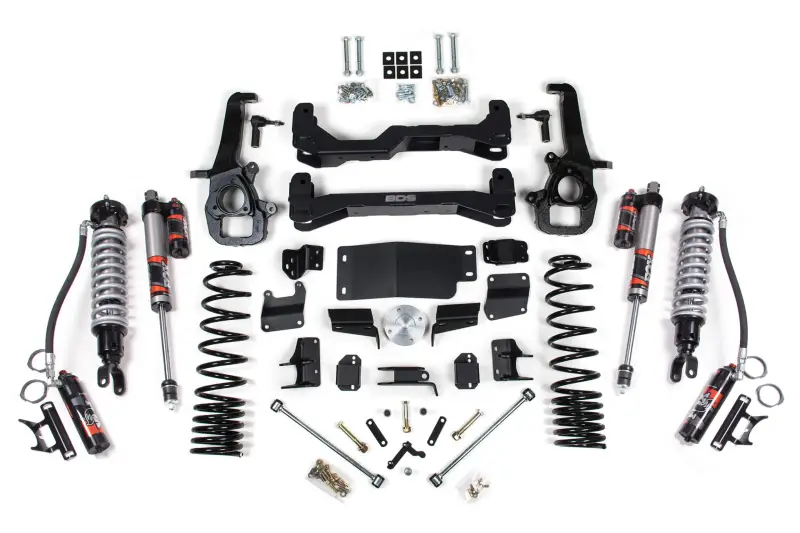

BDS 3 Inch Lift Kit FOX 2.5 Performance Elite Coil-Over Ram 1500 Rebel w/Standard Knuckles (19-24) 4WD (1761FPE)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1761FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $6,399.57
Qty:

Description

Hit the trails in your 2019-2024 RAM 1500 Rebel truck after installing a 3-inch coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Features & Benefits

FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
High clearance crossmember design maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX performance series IFP gas rear shocks to improved ride and offroad performance
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

35 x 12.5 with 20 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace

Prop 65 Notice

ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov

Important Notes

Fits 4WD models only
Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Will NOT fit adjustable "air ride" suspension equipped models.
Standard Ram 1500 acheives 4in of lift with this kit. Rebel and Offroad package trucks acheive 3in of lift due to being 1in taller from the factory.
Will NOT work on diesel models
Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below.
IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE

Specification

Front Lift Method : Cross-Member
Front Lift Height : 3
Rear Lift Method : Coil Spring
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 2-3.5"
