BDS 4 Inch Lift Kit w/ Radius Arm FOX 2.5 Performance Elite Coil-Over Conversion 5" Rear w/3 Leaf Main Ford F250/F350 Super Duty (17-19) 4WD Diesel (1966FPE)

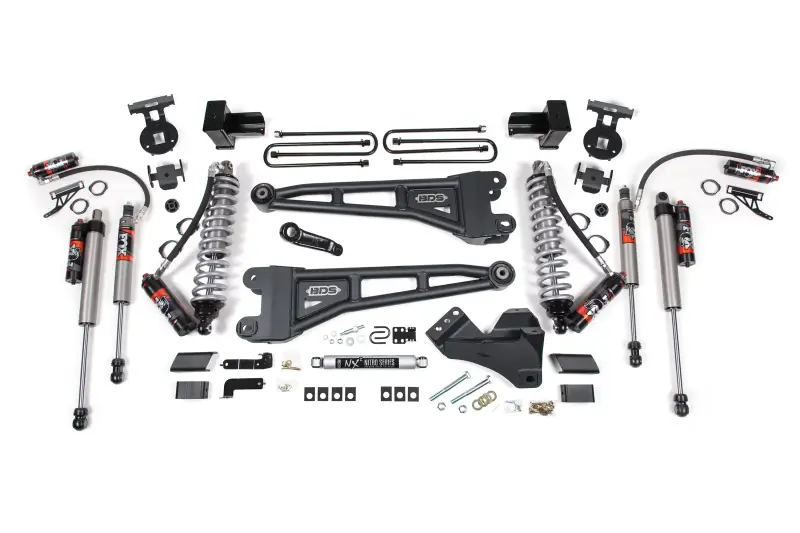

This image is a representation of the product only. Actual product may vary in appearance.
BDSK-BDS1966FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing:
$7,365.72
Description
Built to outperform, upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
FOX 2.5 Coil-Over mounts in factory coil bucket location
Adds additional secondary FOX 2.0 shock for max performance
Eibach coil springs ride smooth through the roughest terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
Fabricated steel blocks provide level stance from front to rear
FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Lift Option
5 Inch Block
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Leaf Springs
Reduces axle wrap and creates a more controlled and stable feel
Multi-leaf progressive design for smooth ride
Maintains factory payload weight ratings
Anti-friction pads provide a smooth and quiet ride
Auxiliary Front Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
FOX 2.5 Coil-Over mounts in factory coil bucket location
Adds additional secondary FOX 2.0 shock for max performance
Eibach coil springs ride smooth through the roughest terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
Fabricated steel blocks provide level stance from front to rear
FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Lift Option
5 Inch Block
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Leaf Springs
Reduces axle wrap and creates a more controlled and stable feel
Multi-leaf progressive design for smooth ride
Maintains factory payload weight ratings
Anti-friction pads provide a smooth and quiet ride
Auxiliary Front Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Important Notes
If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
37 x 12.50 tires may require minor trimming.
Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
If your truck is equipped with a factory rear sway bar add: 123005
Fits SRW models only.
37 x 12.50 tires may require minor trimming.
Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
If your truck is equipped with a factory rear sway bar add: 123005
Fits SRW models only.
Specification
Front Lift Method : Coil-Over
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 2"
Shocks Included : Yes
Lift Height : 4-5.5"
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 2"
Shocks Included : Yes
Lift Height : 4-5.5"
