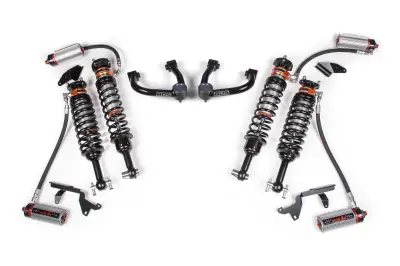

BDS 3 inch Lift Kit FOX 3.0 Factory Race Series Coil-Over Ford Bronco w/Uniball Control Arm (21-25) (1905FRS)

Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Factory Race Series 3.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes FOX Factory Race Series 3.0 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 3.0 Factory Race Series coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

FOX Factory Race Series
FOX 3.0 FRS shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 3-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed uniball or ball joint with correct positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

Performance UCAs increase strength and allow for more suspension travel
FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Factory Protection Plus drivetrain warranty included
Easy, 100% Bolt on installation
3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body
Patented, internal bypass design
Application-specific springs
7/8" stainless steel shafts
Vehicle-specific tuning maximizes performance
Redundant sealing pack system: main seal, wiper seal, scraper seal
Finned reservoir, with DSC adjuster
Position- and velocity-sensitive damping maximize comfort and control through any terrain
Tune vehicle for load, environment, and driving style with DSC adjusters
Front coil-overs provide 4-4.5" lift with aftermarket upper control arms on base models and 2-2.5" lift on Sasquatch models
Recommended Tires & Wheels

(Trimming may be required)

37 x 12.5 with 17 x 9 and 5.5 in. Backspace
37 x 12.5 with 18 x 9 and 5.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace
